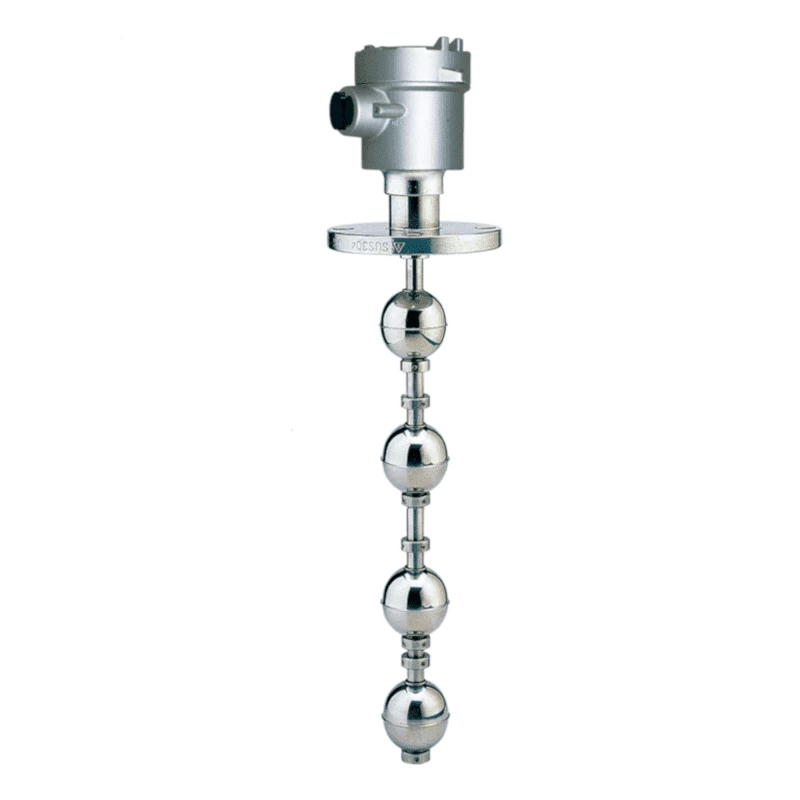

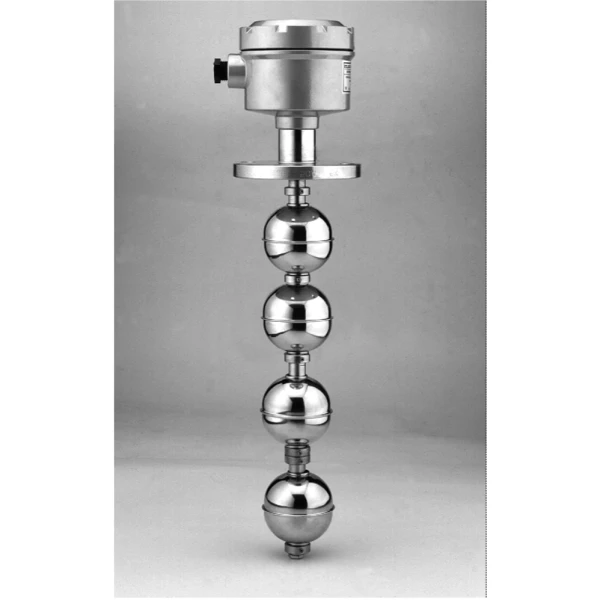

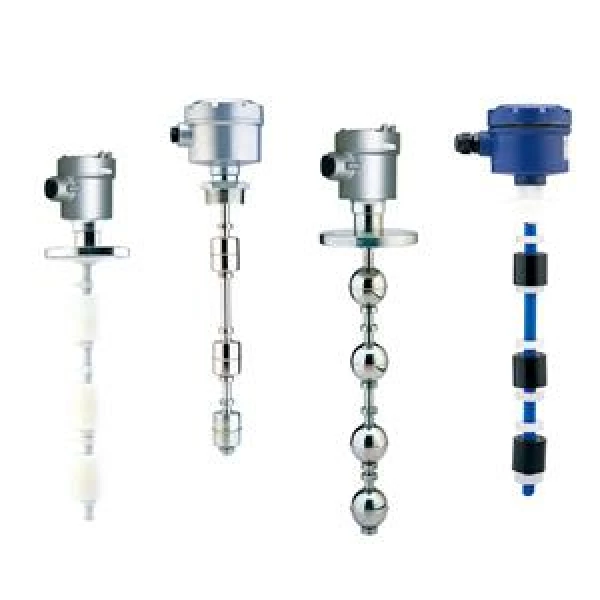

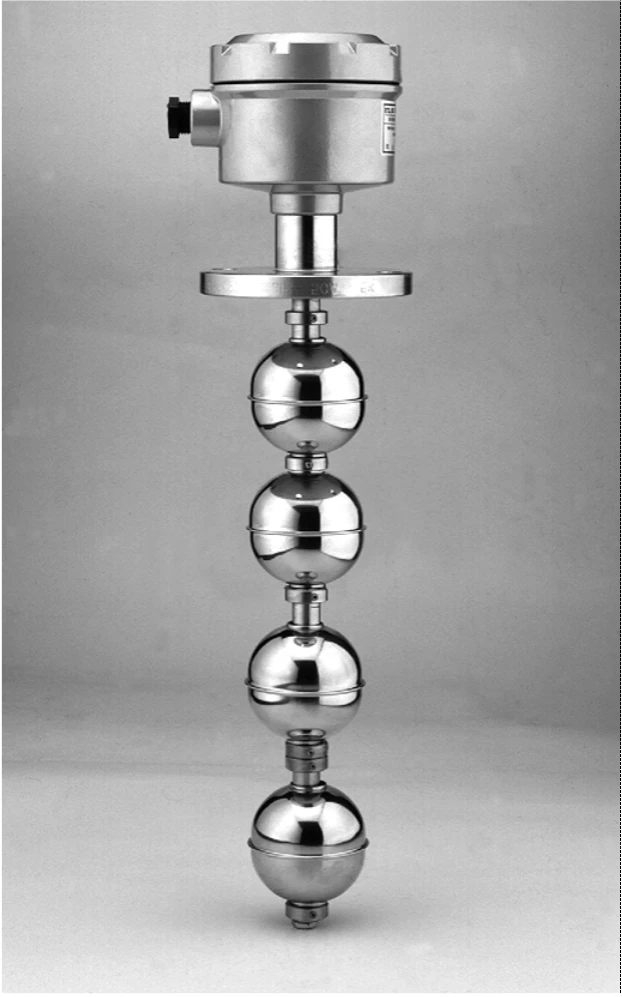

Level switches from FineTek are available in a variety of designs and are made to customer specifications. The FD Series is a product line of magnetic float switches that mount on the top of the tank with screw or flange mounting. The function of the switch, NO or NC, is easily set by the user and all switches are available with marine approval or an ATEX certificate. FineTek's float switches are versatile very robust and therefore suitable for any kind of industry.
Weight | N/A |
---|---|
Brand | FineTek |
Tube length (mm) | 1000, 500 |
Version | 1 float, 2 floats |
Process Connection | DN25 PN10, G1" |
Output | SPDT contact |
Housing | SUS304 |
Electrical connection | Swivel PG |
