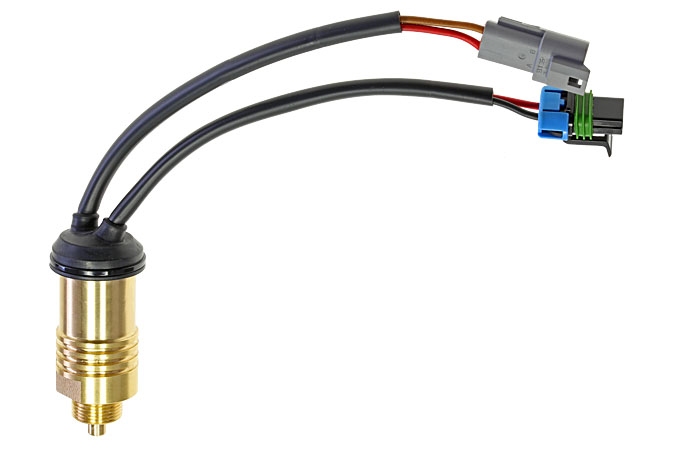

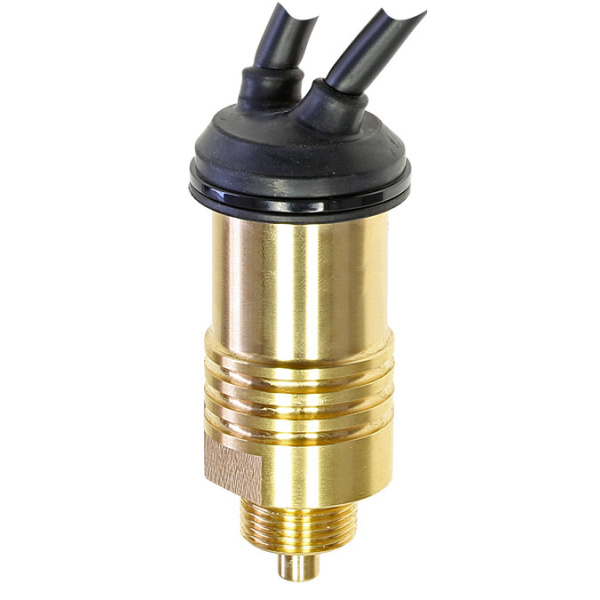

Fan control OEM | MEFC- thread M20x1.5

Input: 12...35 VDC
Output: 0...16 A (PWM)
Connection power supply: Deutsch DT04-3P (male)
Connection fan: Delphi Metri-Pack 280 (female)
Process connection: M20x1.5
Model No.: KH000000

Description
Downloads

Input: 12...30 VDC
Output: 0...16 A (PWM)
Applications: oil cooling, water cooling
Approvals: CBA, CE type approval certificate no. E1*10R06/01*9229*00
Average temperature: max. 120 °C
Operating temperature: -40...85 °C
Fan connection: Delphi Metri-Pack 280 (female)
Power supply connection: DT04-3P (male)
Protection class: IP67
Power supply: 12...30 VDC
Dimensions: approx. 276 x 35 mm
Weight: approximately 307 grams
