New

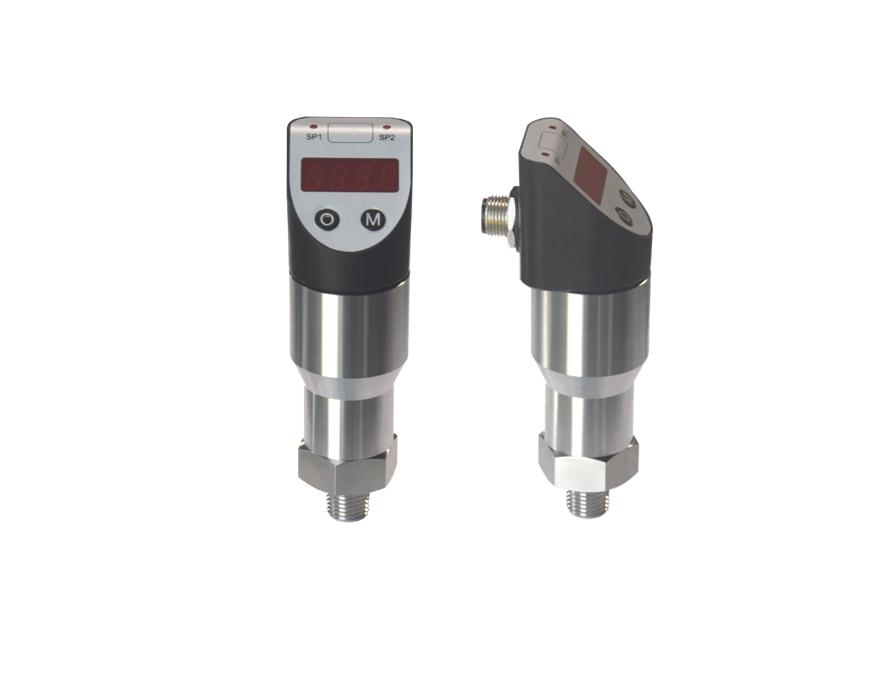

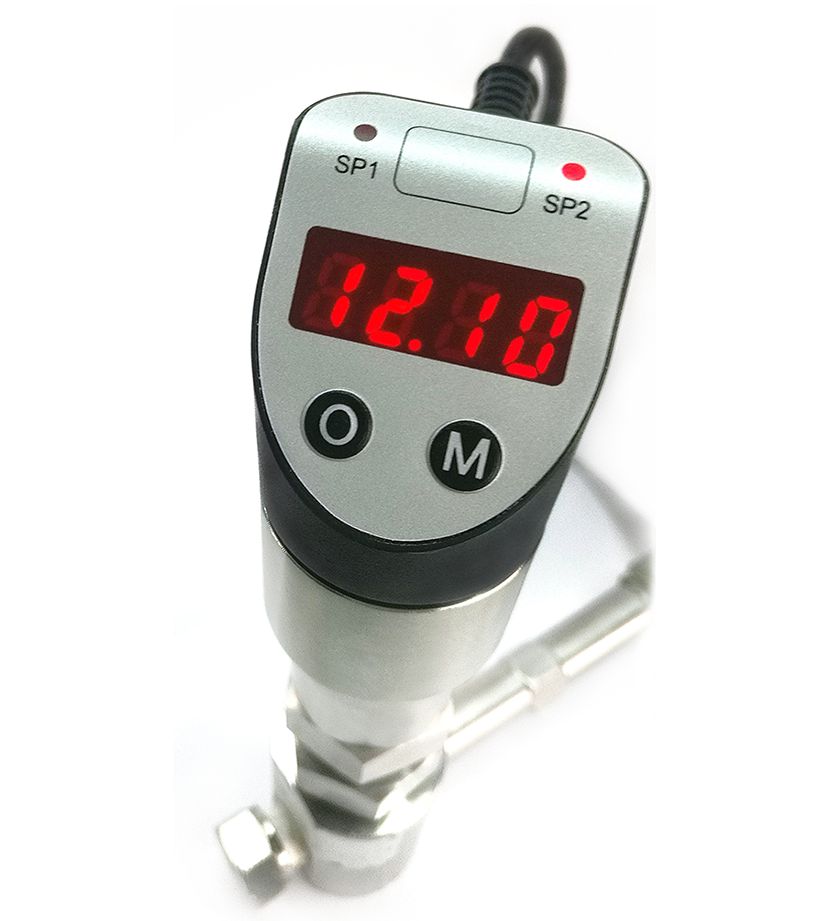

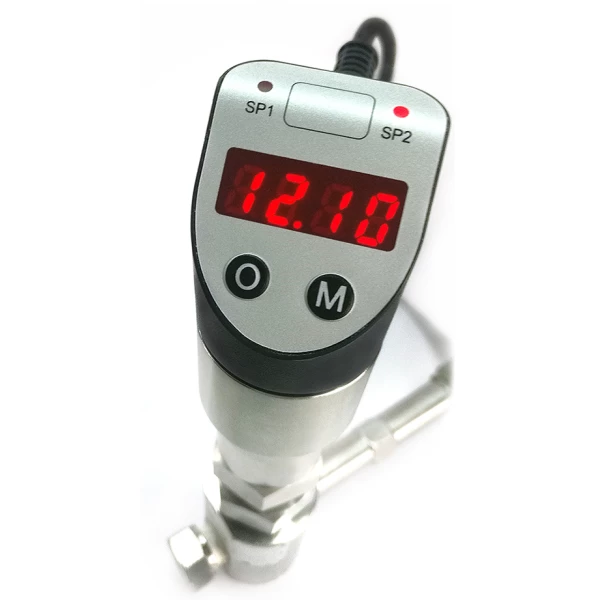

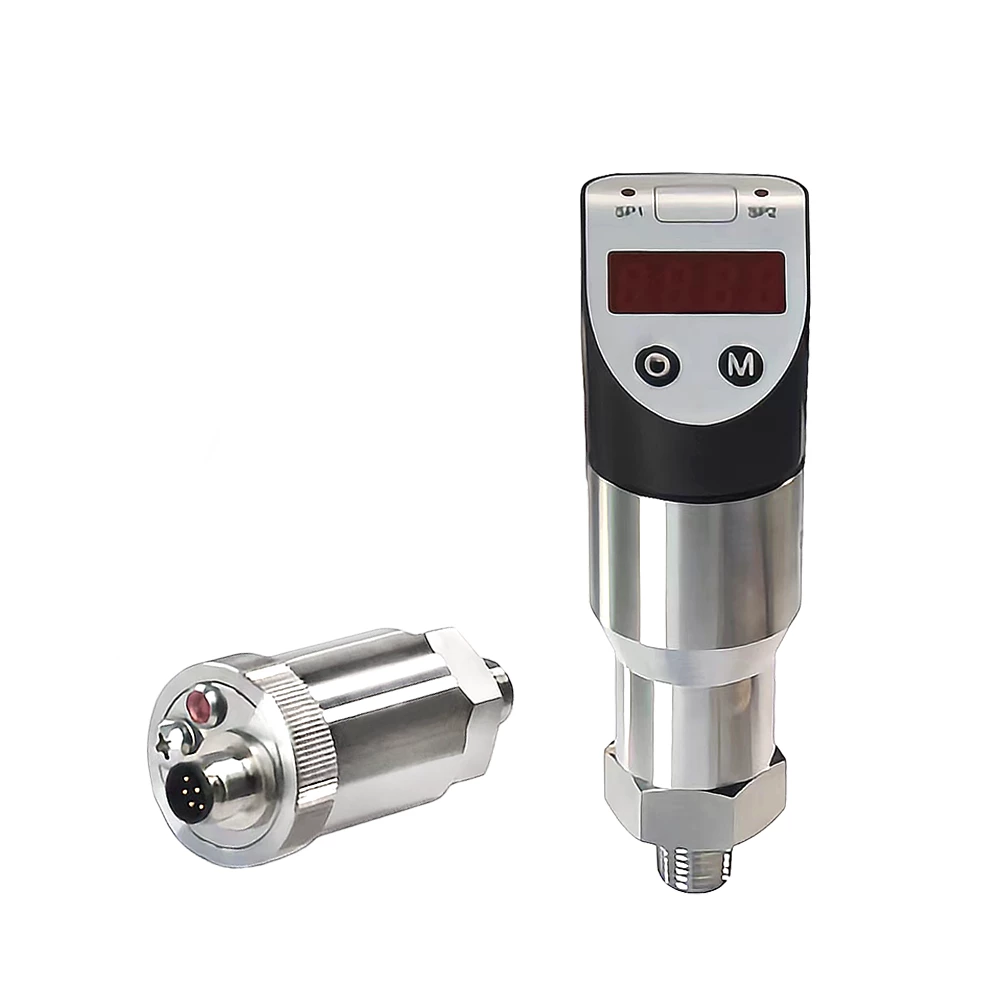

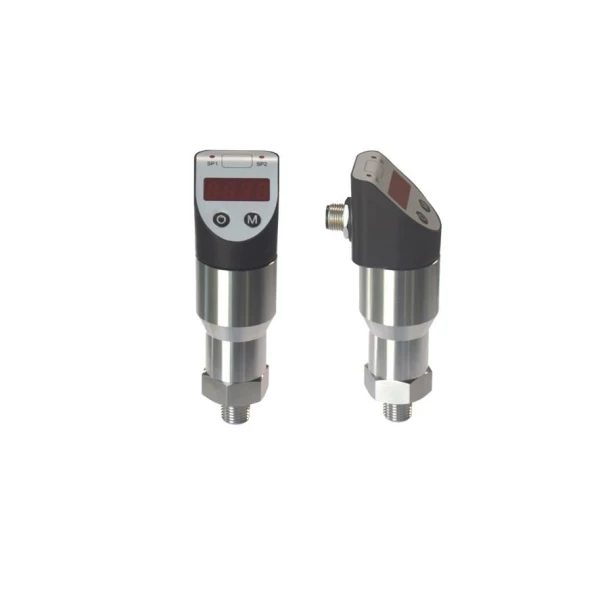

Electronic Pressure Switch and Transmitter | SRS-CS-PT623

OLED display, IP65
Surge Protector
Housing / head 330° rotatable
Relay outputs
Setting switching points (separately for each point)
Housing of SS304
Protection IP65
M12x1 5-pole connection
OLED display.

Pressure range (Bar)

Output

Process Connection

Electrical connection

Clear

The SRS-CS-PT623 is an intelligent pressure transmitter that combines pressure measurement, local display and control. The device uses an advanced ARM industrial MCU as its core and a high-quality pressure sensor as its measurement element. With its well-engineered and tuned design, the SRS-CS-PT623 responds quickly and has good electromagnetic compatibility for pressure control while maintaining accuracy. It can be widely used for pressure control in industrial locations in pumps, hydraulic and pneumatic equipment, among others. The SRS-CS-PT623 can visually display the process pressure and switch contact status through the switch output, analog output and display. It provides various output signals for different applications. The OLED display is very clearly readable.

Applications:

Hydraulics
Industrial Automation
Cooling units
Generators
Compressors
Heating systems
Water Management

Weight	1 kg
Pressure range (Bar)	0 … 10, 0 … 100, 0 … 250, 0 … 40, 0 … 400, 0 … 6
Output	4 ... 20 mA
Process Connection	G1/4" BSP external
Electrical connection	M12x1, 5 pole
