Hikmicro Eco | 96 x 96 pixels

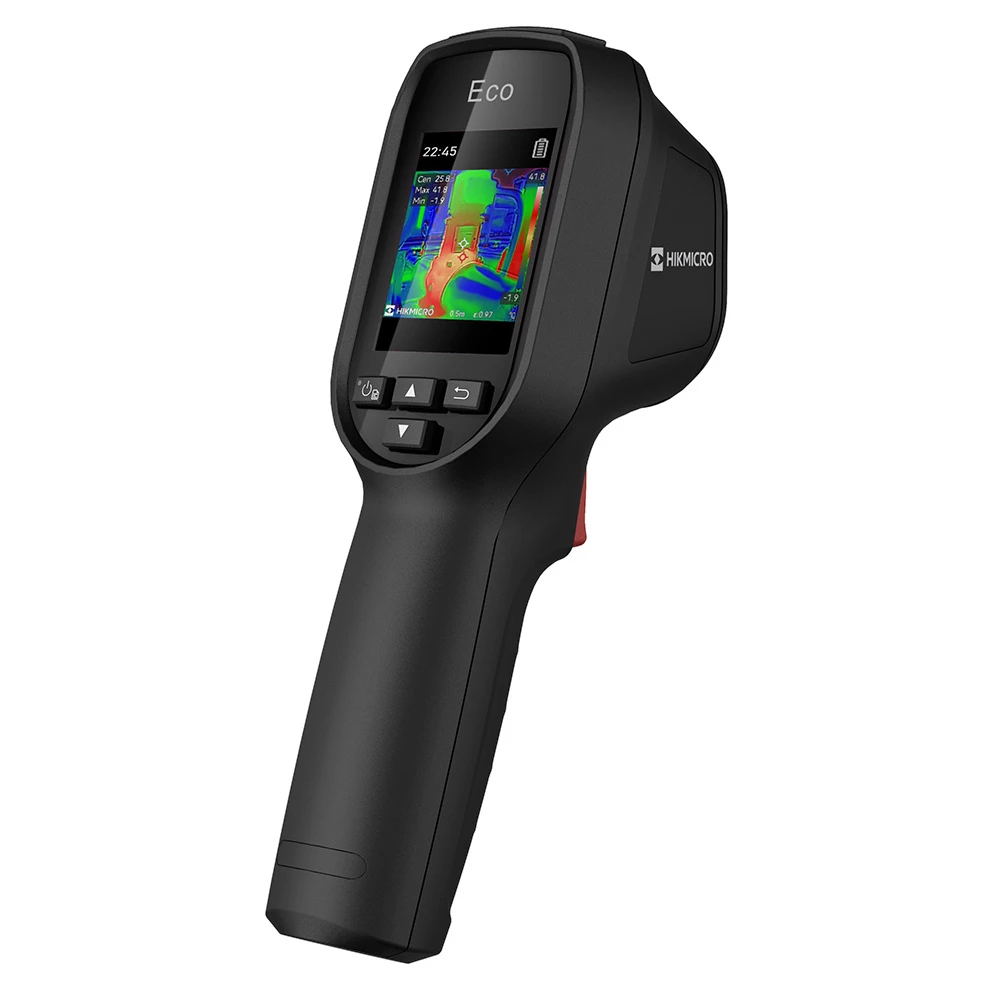

HIKMICRO ECO thermal imaging camera 96 x 96 pixels

The "Super IR" resolution gives the ECO an extra sharp image, which can be compared to a resolution of 240×240 thermal pixels. The "Super IR" provides digital concealment of pixels through extremely clever software. This allows the original 96×96 pixels to be converted to 240×240 pixels. That makes this thermal imaging camera a product which is very competitively priced with very high thermal resoultie. The Hikmicro ECO also features a laser pointer to easily see at a glance where the thermal camera is pointed.

Key features

• NETD: < 50mK (@ 25°C, F# = 1.0)
• Built-in 4 GB flash memory: 30,000 images
• Distance to spot ratio (D:S) 112:01:00
• Detector distance 12 μm
• Focal length 1.35 mm
• Spectral range 7.5 to 14 μm
• F-number F1.0
• Spatial resolution (IFOV) 8.89 mrad
• Min. Focusing distance 0.1 m (0.33 ft)
• Focusing free
• Screen display 240 × 320 resolution, 2.4″ LCD screen
• Color alarm: Above temperature alarm
• Accuracy Max (± 2°C/ ± 2%), for ambient temperature 15°C to 35°C and object temperature above 0°C
• Automatic level and range
• Rechargeable via USB Type-C
• Laser class II
• Impact-resistant housing
• Operating temperature range -10°C to 50°C
• Storage temperature range -40°C to 70°C
