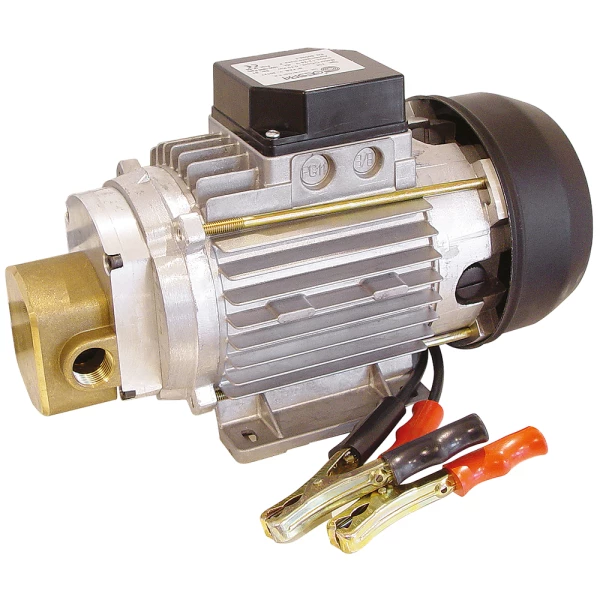

EA-90 24 VDC 0.37 kW - 20-25 l/min

The self-priming gear pumps are suitable for all types of oil supply and allow hose reel coupling in delivery.

This pump is suitable for use in agriculture, construction, public works, industry, ...

It delivers oil up to a suction height of 2.5 m from air tanks or underground tanks.

Technical data:

• With recirculation bypass system
• It is suitable for medium/low density lubricant transfer
• Suction power: 2.5 m - Delivery: 40 m
• Flow: 20-25 l/min (SAE-20/50W at 25ºC)
• Motor: 0.37 kW, self-ventilated 12 or 24 VDC
• S1 continuous operation
• IP-55 protection
• Consumption: 35-55 A (12 VDC) and 20-32 A (24 VDC)
• 1,500 rpm
• Bypass tared at 5-6 bar
• Inlet/outlet tube: 1/2″ GAS (BSP)
• With terminals for 12 or 24 VDC battery connection with 2 m cable
