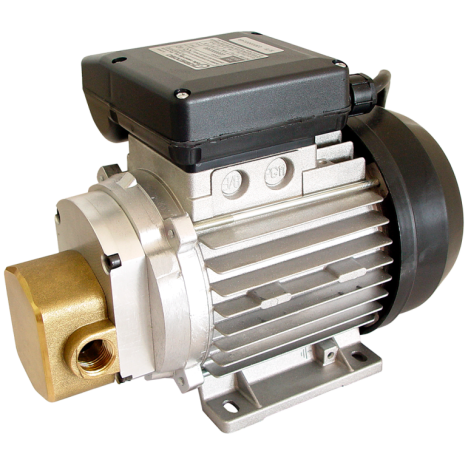

EA-88 (0.37 kW) 230 VAC 20-25 l/min

Self-priming gear pumps for lubricant transfer. They are suitable for use in agriculture, construction, public works and industry.

Technical data:

• With recirculation bypass system
• It is suitable for medium/low density lubricant transfer.
• Suction power: 2.5 m - Delivery: 40 m
• Oil flow: 20-25 l/min (SAE-20/50 W at 25 ºC)
• Motor: 0.37 kW, self-ventilated 230 VAC 50/60 Hz single-phase - IP-55 protection
• With thermal protection
• Consumption: 2-4 A
• 1,500 rpm
• Bypass pressure: 5-6 bar
• Inlet/exhaust: 1/2″ GAS (BSP)
• On / off button
• 3 m 230 VAC connection cable with injected plug
• Housing material: brass
