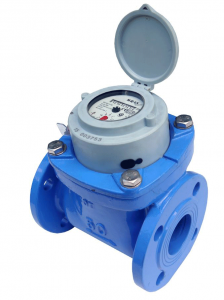

DN150 Woltmann Helix water meter (cold)

Type: WP-SDC-150

Q1 0.5 m3/h, Q2 0.8 m3/h, Q3 40 m3/h, Q4 50 m3/h
DIAL TYPE: SUPER-DRY DIAL (frost-resistant)
METER BODY MATERIAL CAST IRON - epoxy coated
DRINKING WATER APPROVED (75/33 / EEC)
ACCURACY CLASS MI-001 R80
INSTALLATION HORIZONTAL OR VERTICAL
CONNECTIONS DIN Flange PN16 (others on request)
MAXIMUM PRESSURE 16 bar (PN10, PN25 options)
MAXIMUM TEMPERATURE 30C
100, 1000 LITER PER PULS ~ Reed switch.
SAFETY TAMPER EVIDENT WIRE LOCK & SEAL

MODEL: OMEGA
METER TYPE WOLTMANN HELIX (Bulk Meter)

Woltmann "Bulk" water meters are ideally suited for higher flow rate applications requiring an extended measuring range. Models feature a highly sensitive but robust Helix insertion mechanism capable of operating at relatively low flows with low velocity requirements, yet withstanding high overload currents. Meters are suitable for both horizontal, vertical and inclined installation position depending on requirements.

Characteristics::

• Suitable for water distribution and industrial applications.
• Large Measuring Range Portable Water Approved
• MID Approved R80 T30
• Suitable for water distribution and industrial applications
• Low starting flow rate , high overload capacity
• Removable measuring element "Drop in Design"
• Low head loss
• Long measurement stability
• Tamper Evident Seals
• Retrofittable with Reed Switch Pulser in two pulse value positions
• Dry dial, counter protected from condensation
• Counter with large highly visible digits
• Approved for water up to 30°C (max. 50°C)
• Suitable for horizontal, vertical and inclined installation positions
