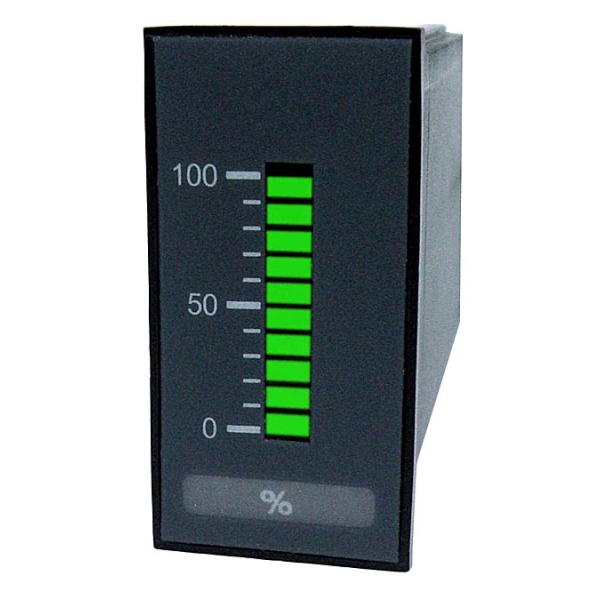

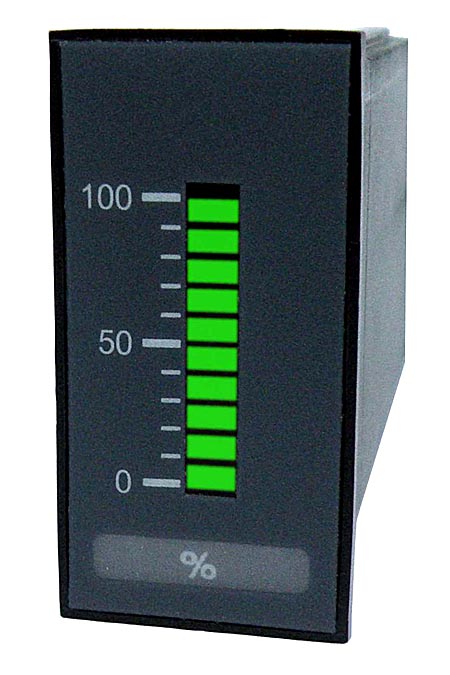

Digital display bar graph 10 segments | MB1 48 x 24 mm

Bargraph MB1 | 48 x 24 | 0 ...100%

Description
Downloads

10-point bar graph - NEW: color red or green selectable via coding switch
Low installation depth: 30 mm without pluggable screw clamp
Parameterization via HEX switches and buttons
Factory-set input for standard signal 0 to 10 V and 0/4 to 20 mA
free adjustment to the input signal possible
8 different display types can be parameterized as bar, dot/dot or curtain
Free choice of direction and display in the middle (e.g. Bars from the middle)
gradual brightness control
Front protection rating IP65
pluggable screw clamp
optional: switchable colors green/orange, blue/red
