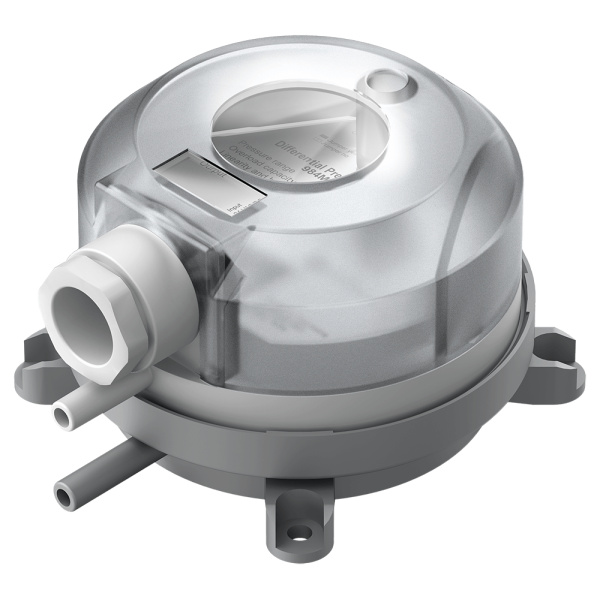

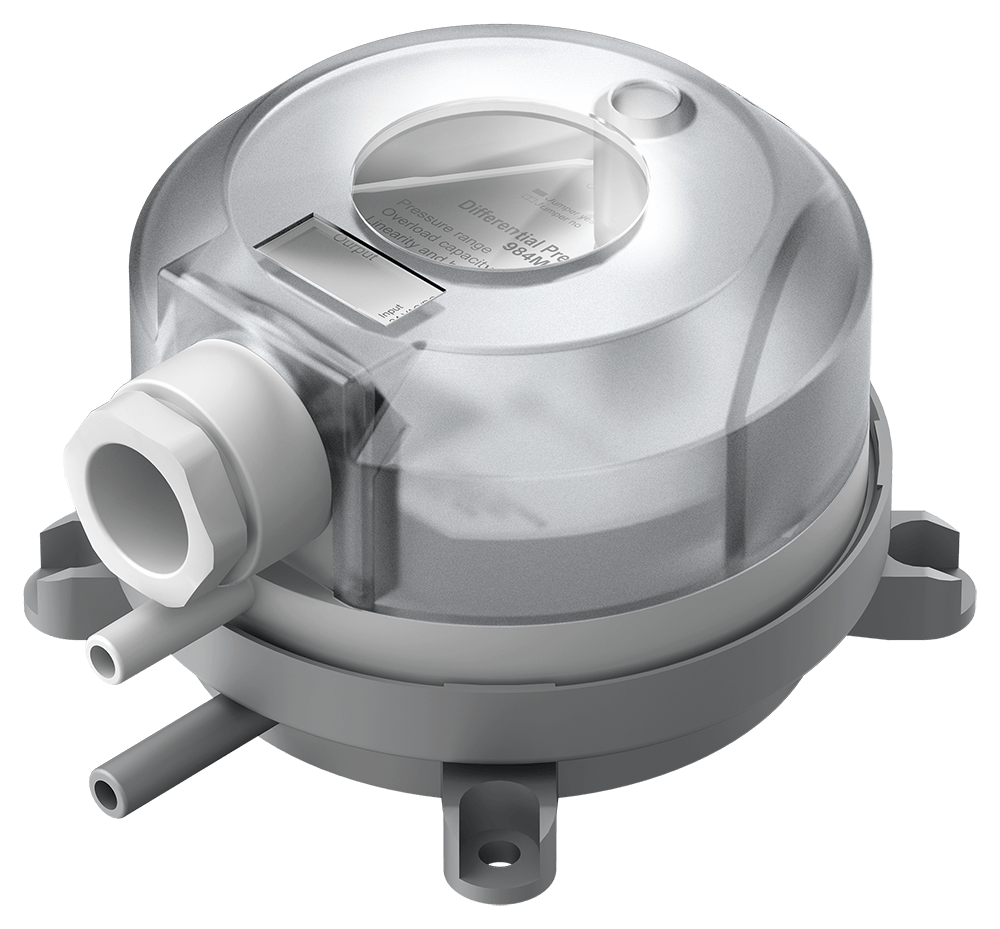

Beck differential pressure transmitter type: 984M553104B

Differential air pressure transmitter
Item no.: 984M553104B
Output: 0-10 Vdc / 4-20 mA
Range: 0 ... 250 Pa
3-wire
24 Vac/dc

The 984M series air pressure transmitters are used to measure differential pressure, gauge pressure and vacuum. Air differential pressure transmitter 984M can be selected between two adjacent pressure ranges in the same unit. Differential air pressure transmitter 984M has selectable output via sweater, 0-10 Vdc or 4-20 mA output, 3-wire.

Range: 0 ... 1 Kpa
Output: 4-20 mA or 0-10 V

Pressure range (Pascal)	0 … 100, 0 … 1000, 0 … 100000, 0 … 250, 0 … 25000, 0 … 500, 0 … 5000
Output	4 ... 20 mA, 0 ... 10 VDC - 4 ... 20 mA selectable
Product No.	984M.523104, 984M.523204, 984M.533104, 984M.533204, 984M.543104, 984M.543204, 984M.553104, 984M.553204, 984M.573104, 984M.573204, 984M.593104, 984M.593204, 984M.5B3104, 984M.5B3204
