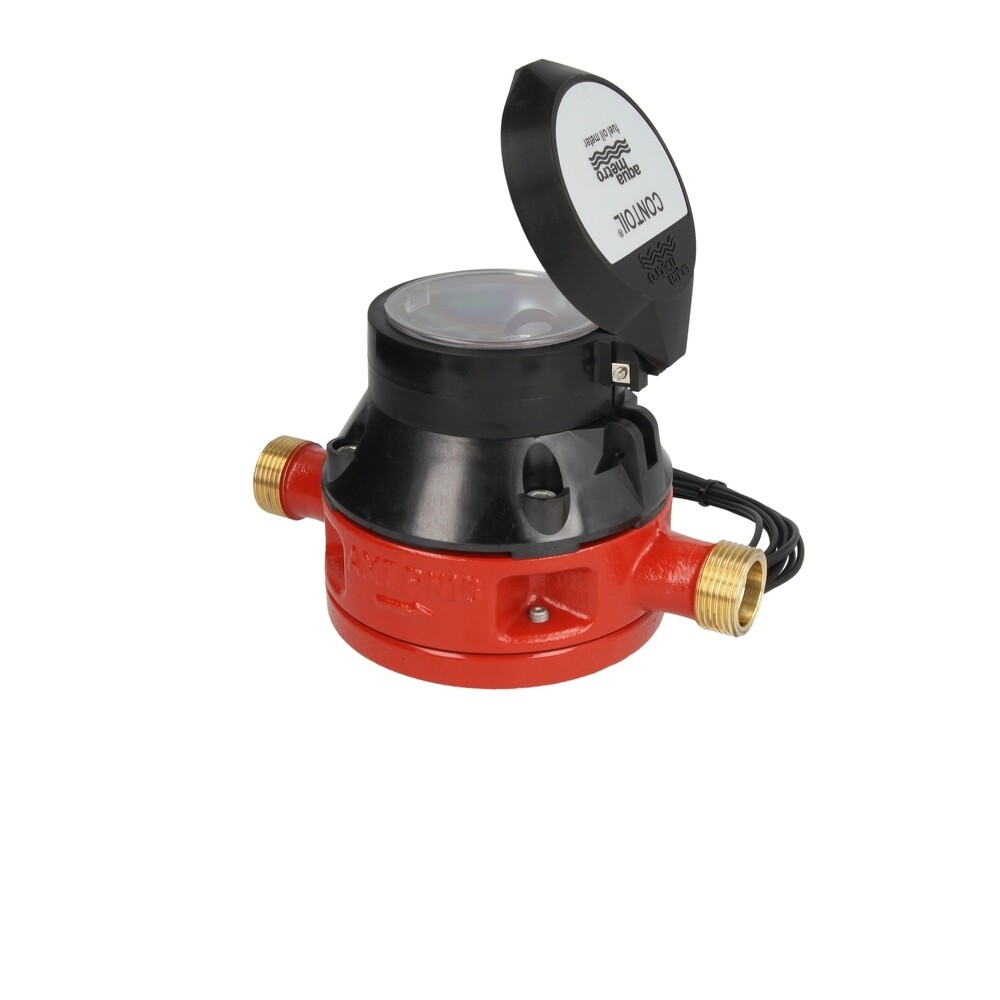

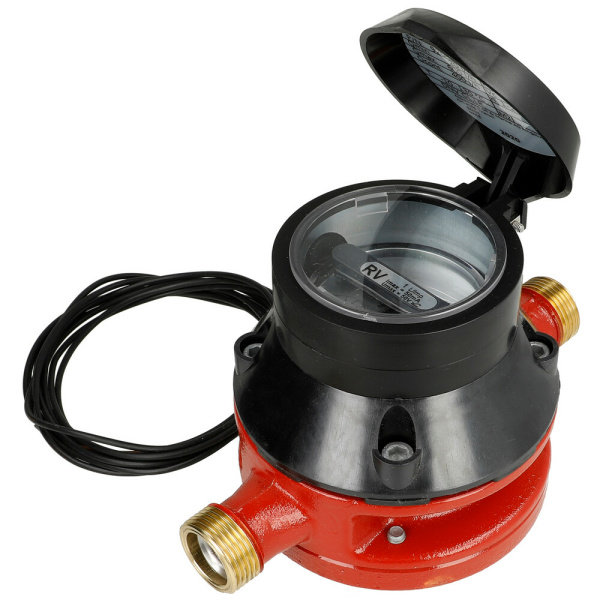

Aquametro Oil meter for flow or consumption measurement | 10 ... 400 l/h - VZO 15 RC 130/16

Type: VZO 15 RC 130/16
CONTOIL® fuel oil meter
Measuring principle: Ring piston
Nominal pressure: PN 16 bar
Installation length: 165 mm
Nominal diameter: DN 15 mm
Threaded connection: 3/4″
Couplings for pipe: 1/2″

Oil flow meter for consumption and flow measurement of mineral oils. The meter provides exact measurement results, as they are independent of the temperature and viscosity of the medium. Free mounting position, installation pressure or suction side, compact and space saving, no straight supply and discharge sections required. Optional remote readout.

Implementation:	Reed pulser
Measuring range:	10 .. 400 l/h
Connection:	External thread
Connection size:	3/4″ US
Temperature max [°C]:	130
Assembly:	horizontal, vertical
Overall length [mm]:	165
Nominal pressure PN [bar]:	16
Measurement Accuracy:	± 1%
Flow rate [l/h]:	400
Nominal size:	15 mm
Length x Width x Height [mm]:	165 x 105 x 130
Protection:	IP65
Turn-on time:	50 % ± 10%
Voltage [V]:	max. 48V AC/DC
Power:	max. 2 W
Switching power:	max. 50 mA (Ri = 47 Ohm/0.5 W)
Pulse value [liters/pulse]:	1
Display max:	1 million liters
Transport medium:	Diesel, fuel oil, gasoline
Deviation in %:	± 1, ± 0,2
Feature:	vibration-resistant
Calibration:	Yes
Manufacturer	Aquametro
Manufacturer no.	92043
Masse [kg]	2,38
Customs tariff number	90282000 (CH)
