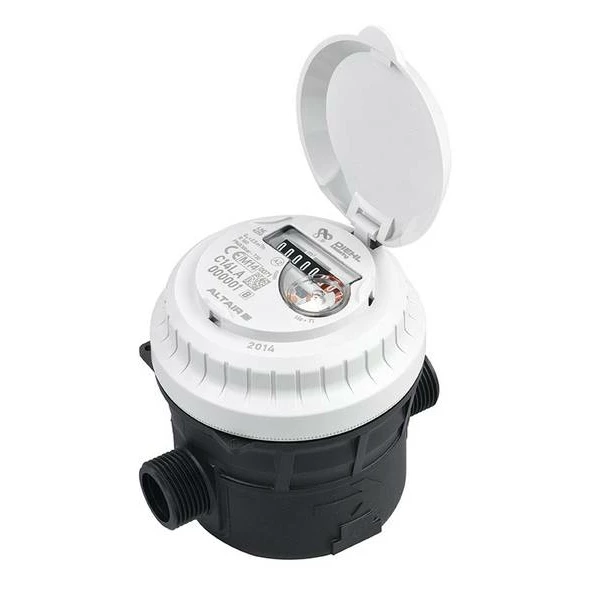

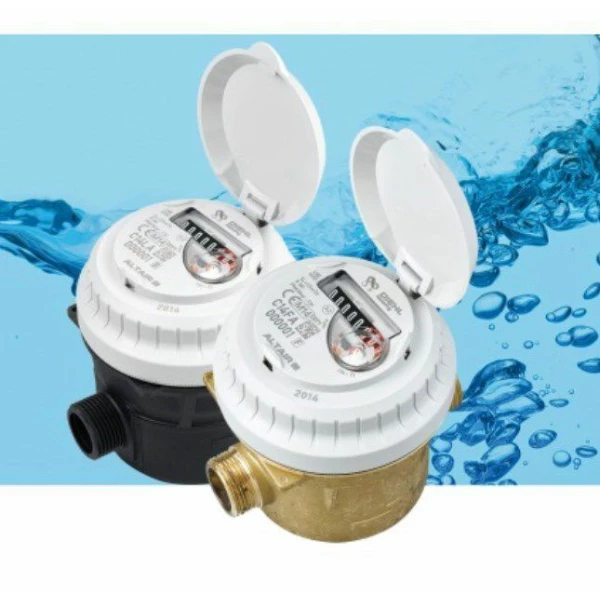

Altair V4 DN15 Volumetric Water Meter (composiet)

High dynamic range (up to 1,000)
Starting flow rate at 0.5 l/h
Installation in any position
Compact 4 MID approved with R up to 800
Brass version
Register with modularity "Ha + Ti"
Glass/metal register in option
DN 15
Option: Pulse output

Volumetrische watermeter – WRAS goedgekeurd DN20 110mm lengte R400 Koud water T50.
Supplied with DN20 reducing nuts, tails and washers.

Nominal Flow (Q3): 2.5 m3/hr
Starting Flow: 0.4 l/hr
Minimum Flow (Q1): 6.25 l/hr
Maximum Flow (Q4): 3,125 m3/hr

ALTAIR V4 represents the new generation of developed volumetric meters within the framework of MID (Measuring Instruments Directive) and field requirements. ALTAIR V4 is very compact and thus adapts to the most restrictive environments (i.e. water closets). ALTAIR V4 is a robust meter, compatible with different grades of water. ALTAIR V4 is modular and can be connected at any time with the IZAR RADIO, the IZAR DOSING device or the pulse transmitter IZAR PULSE, gateway to other systems.

OPTION: IZAR PULSE V5
