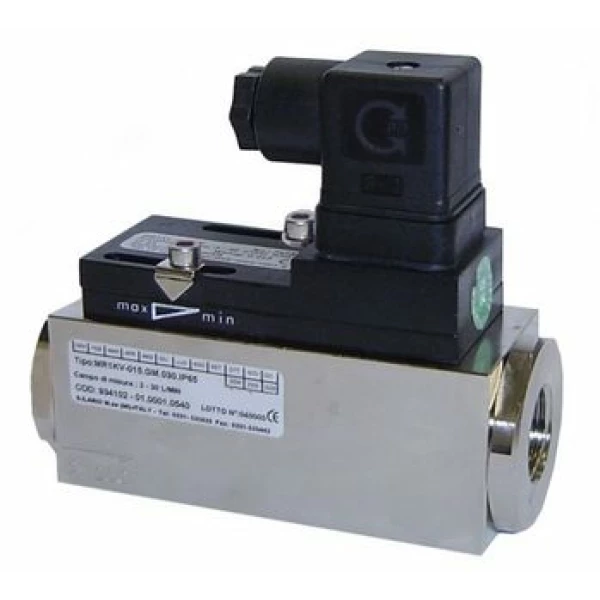

Adjustable flow switch Type: MR1

Piston Observation Element
Liquid and gas media application (Max 300 Cst)
Hermetic separation between current and switch head
Nickel-plated brass or steel housing
Pmax up to 200 bar - 500 bar on request
Tmax up to 120 ° C
SPDT contact, 250 Vac - 50VA
Protection class IP65
Process connections from 1/4″ to 1" Gas-F

Range

Process Connection

Clear

Adjustable flow switches with floating piston. The calibration system, with safety lock, allows precise adjustment of the set value. Electrical connection is made by a DIN 43650 connector and PG9 cable gland. Maximum working pressure 200 bar. Maximum temperature 120 ° C. Maximum viscosity of the liquid 300 Cst. Working in any position.
